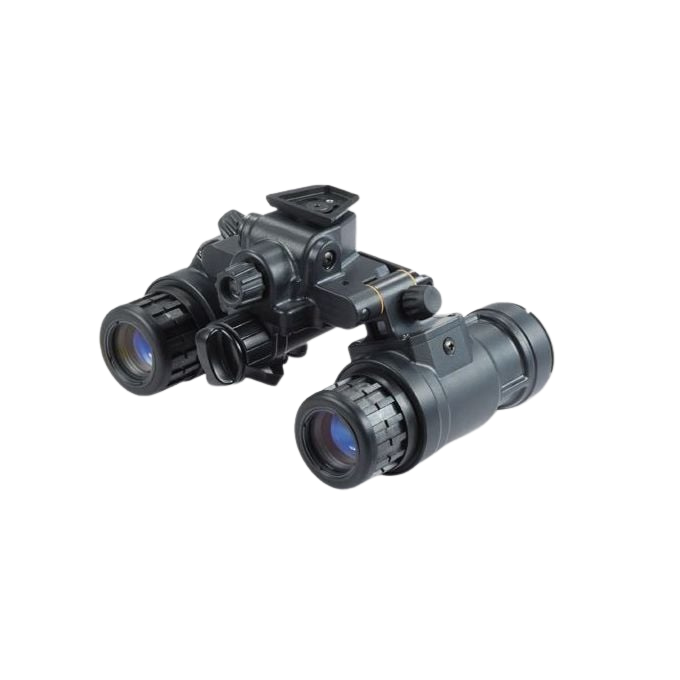

L3Harris BNVD (AN/PVS-31A) 2376+ FOM

Elite-Level Night Vision for Professional Operations



This compact and lightweight dual-tube goggle was designed with input from Special Operations Forces. Offering exceptional situational awareness, the BNVD combines Gen III image intensifiers with white phosphor for high-contrast, depth-rich vision — ideal for critical night missions where clarity and response speed are essential.

---

Key Features



• Gen III image intensifier tubes with auto-gating to protect against bright light

• White phosphor display for improved contrast and depth perception

• Manual gain and focus adjustments for adapting to varying light conditions

• Rotating design allows toggling between binocular and single-tube (monocular) use

• Automatic power-off when stowed, with automatic activation when deployed

• LED indicators in each eyepiece signal IR usage and low battery

• Replaceable intensifier tubes allow for easy upgrades or repairs

• Compatible with standard dovetail helmet mounting systems

• Lightweight, ergonomic housing for reduced neck strain



---

Specifications



• Dimensions: ~ 4.7″ (L) × 4.2″ (W) × 3.4″ (H)

• Weight: Under 450 g (with AA lithium battery)

• Power: 1 × AA lithium battery

• Battery Life: ≥ 8 hours (standard), ≥ 24 hours (with optional 4-cell AA pack)

• Field of View: Approximately 40°

• Focus Range: 45 cm to infinity

• Diopter Adjustment: From +2.0 to –2.0 (factory-set to –0.5; optional lenses available)

• Intensifier Tubes: U.S.-manufactured, high-performance Gen III

• Waterproofing: Rated for immersion to 66 ft for up to 2 hours



---

Tactical Advantages



• Exceptional Depth & Contrast: Dual tubes + white phosphor deliver superior spatial awareness

• Adaptable to Any Mission: Use as a helmet-mounted goggle, single tube, or handheld

• Comfort for Extended Use: Low-profile design and reduced weight minimize fatigue

• Power-Saving Efficiency: Auto shutdown protects battery, while optional packs offer extended usage

• Durable Build: Rugged housing withstands immersion, impact, and rough handling



---

Use Cases



• Nighttime assault or recon missions

• Special operations (SOF) deployments

• Maritime or ground tactical operations

• High-stakes law enforcement entry

• NVG training for professionals



---

Regulatory Notice



This product is subject to U.S. export regulations and may require an export license. Final sales only – no returns or exchanges.

This product is for MIL/ LE/ US Government Customers ONLY. Equipment cannot be shipped outside the U.S. for non-MIL orders.
