Aire IISKU: AIRE-II
Aire II

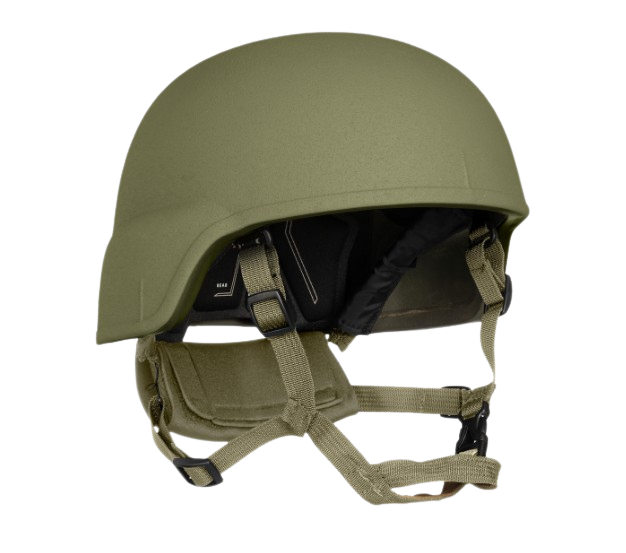

Proudly introducing the next generation of ballistic head protection. Previously named ‘AS-501 Gen II’, the ArmorSource ‘Aire II’ Helmet solution is the lightest version of the U.S. Army Advanced Combat Helmet (ACH / LWACH) on the market.
Designed to minimize weight burden, the Aire II has effectively reduced the weight of the traditional ACH helmet by more than 30% and that of LW-ACH helmets by more than 15%. All while exceeding the ballistic protection of the Lightweight ACH category as a whole, thanks to our proprietary materials and superior development capabilities.
Key Features
Provides extremely high ballistic protection against a wide spectrum of small fragments as well as handgun projectiles

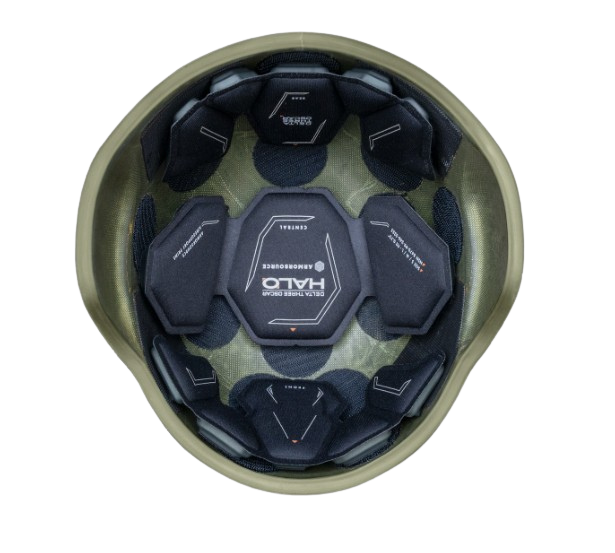

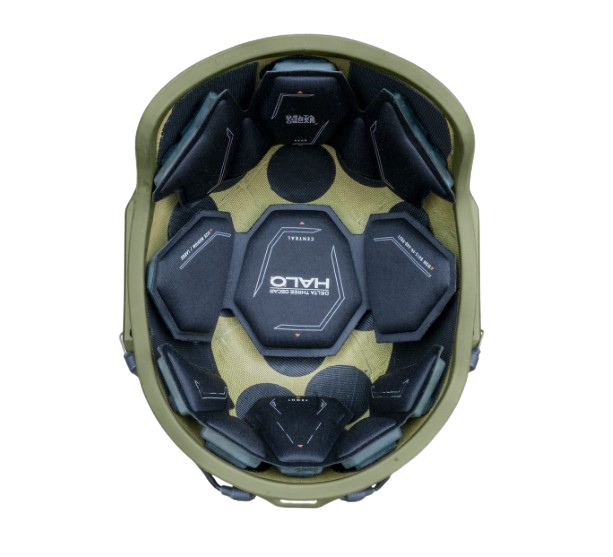

Extremely comfortable due to its light weight and flexible pad system
Utilizes industry leading ballistic technology
Utilizes the ACH/MICH shape used and accepted by the United States and other military organizations worldwide
Available in Bolted and Boltless Versions
Compatible with all ACH accessories and Devices
Proudly made in the USA
Specifications
Shape / Design: U.S. Army ACH Geometry
Shell Construction: Proprietary blend of Polyethylene and Composite Materials
Ballistic Protection: AR/PD 14-01; NIJ level IIIA
Fragments Protection: 17 grain V50 > 2400 f/s (732 m/s) in accordance with AR/PD 14-01
9mm BFD / Trauma: 9-mm RTP/BFD < 1″ average
Environmental / Mechanical Protection / Design: U.S. Army AR/PD 14-01
Certification: From an NIJ certified laboratory
Available Head Sizes: X-Small / Small / Medium / Large / X-Large / XX-Large
Available Shell Sizes: Small / Medium / Large / X-Large
Extreme Testing Conditions: Performs under temperature between 160°F (71°C) and -60°F (-51°C); Performs after 3 hours sea water immersion
Configurations: 100% Boltless (Durability Verified)
Use: Special Units; Military Troops; Tactical Teams; Private Security Contractors
Shell Information
Shell Thickness: 0.3” (±0.1″) / 8 mm (±2.5mm)
Finished Shell Nominal Weight: Medium 0.84 kg (1.8 lbs); Large 0.9 kg (2.0 lbs); X-Large 0.95 kg (2.1 lbs)
Surface Area: M – 1,037 cm² (161 in²); L – 1,081 cm² (168 in²); XL – 1,208 cm² (187 in²)
Nominal Area Density: 7.2 kg/m² (1.58 lbs/ft²)

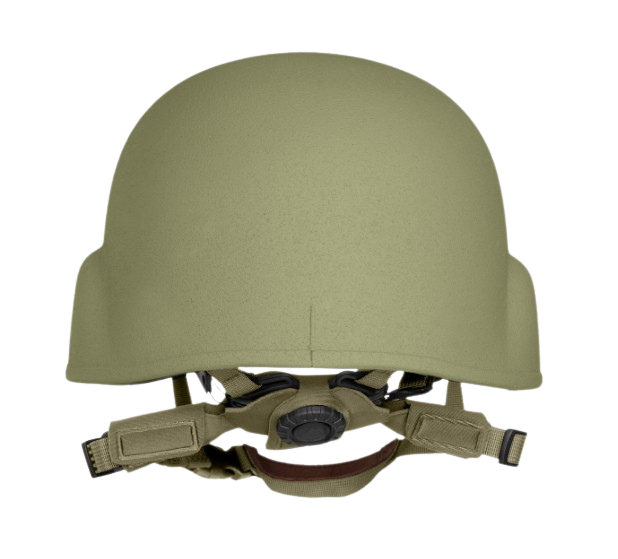

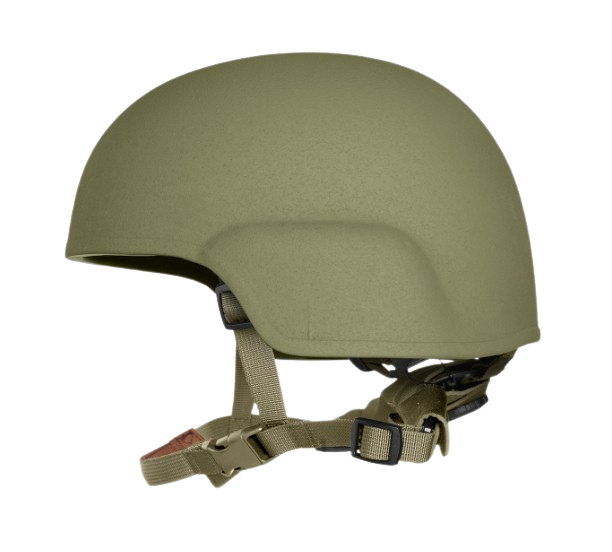

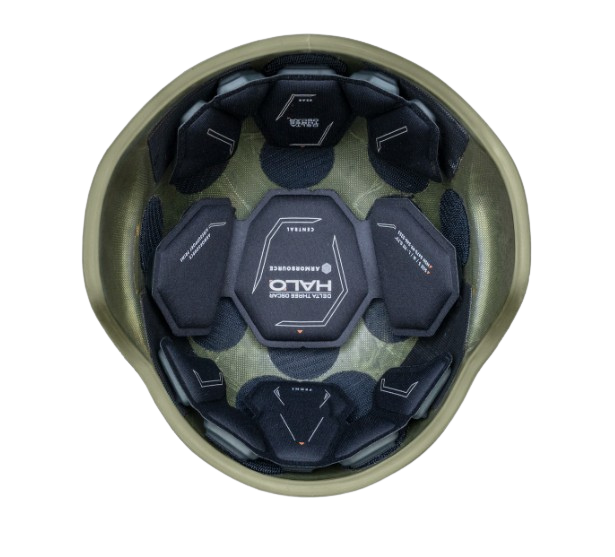

* Regular-cut Shell
