Wilcox RAPTAR Xe (High Power) – Precision and Power for Tactical Professionals
Introduction

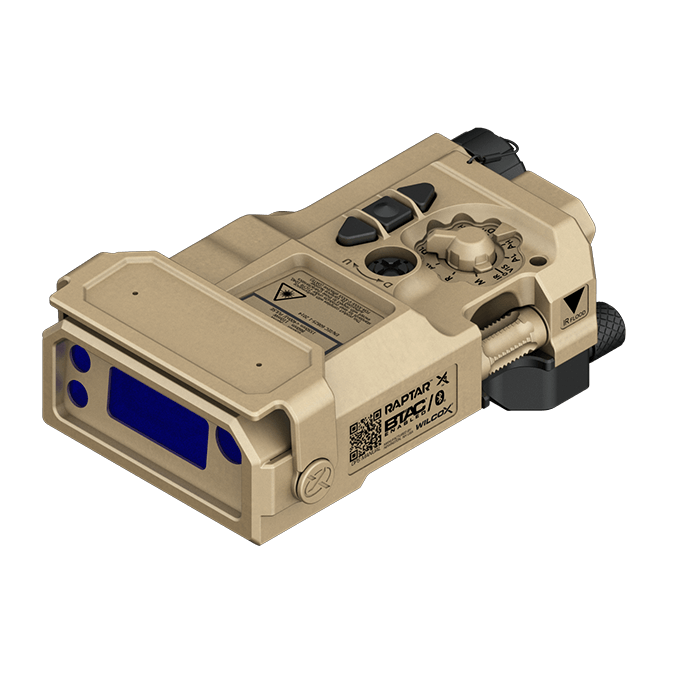

The Wilcox RAPTAR Xe™ is a top-tier military and law enforcement laser aiming system, categorized as a Class 3B high-power device. Engineered for pinpoint accuracy, it merges advanced laser technology with robust ballistics computation, elevating first-round hit probability in long-range engagements. This refined generation of RAPTAR boasts a more compact, lightweight, yet sturdier design, ideally suited for elite shooters and snipers.
Key Strengths
All-in-One Optical Bench
- Combines a red VIS laser, NIR (near-infrared) laser, variable NIR illuminator, and integrated Laser Rangefinder (LRF).
- Designed for seamless deployment, it offers precision in low-light and night operations.
Speckle-Free NIR VCSEL Illuminator
- The NIR VCSEL provides a smooth, uniform beam—critical for accurate target identification and engagement in infrared use.
Advanced Ballistic Computing Onboard
- Includes sensors for temperature, pressure, humidity, inclination, cant, and heading.
- Supports manual or Bluetooth-fed wind data, and outputs precise ballistic solutions in MIL, MOA, or inches via a bright OLED screen.
Smart, User-Friendly Design
- Mounts effortlessly to 1913 Picatinny rails, with simple windage/elevation calibration.
- Features auto-brightness, multi-function remote keypads, and intuitive display for real-time adjustments.
Optimized for Tactical Use
- Runs on a single CR123 battery with over 8 hours of operation.
- Rated for immersion (1 meter for 1 hour), retains boresight within <0.5 mrad.
Critical Safeguards
Stringent Laser Safety Enforcement
- As a Class 3B system, users must follow comprehensive safety protocols to prevent injury—especially concerning eye safety.
- Strict domestic availability rules apply: this high-power variant is exclusively for U.S. government and law enforcement agencies.
Complex Operation Requires Training
- Setup and operation involve navigating an onscreen menu with settings for ballistics, Bluetooth, axis alignment, compass calibration, and more.
- Adherence to instructions and familiarity with the interface is vital to leverage its capabilities effectively.
Specifications Breakdown
| Feature | Details |
|---|---|
| Laser Outputs | VIS red 660 nm (≈75 mW), NIR 850 nm (≈30 mW), NIR VCSEL 860 nm (≈90 mW) |
| Battery | One CR123 battery (3 V) – ≈8+ hr runtime |
| Mounting | Picatinny rail with shock-nuts |
| Ruggedness | Waterproof to 1 m for 1 hr; durable OLED display |
| Ballistic Tools | Auto-sensors + manual wind input; display in MIL, MOA, inches |
Final Verdict
If you are a part of our clientele that includes tactical shooters, snipers, or law enforcement units seeking fusion of laser accuracy and smart ballistics, the RAPTAR Xe is unmatched. Its stealthy NIR performance, integrated rangefinding, environment-aware calculations, and Picatinny-mount convenience set it apart. When performance could mean mission success, this tool ensures your customers stay ahead—safe, precise, and responsive.
Contact us today to request a quote, learn about department pricing, or schedule a demo for your agency.
